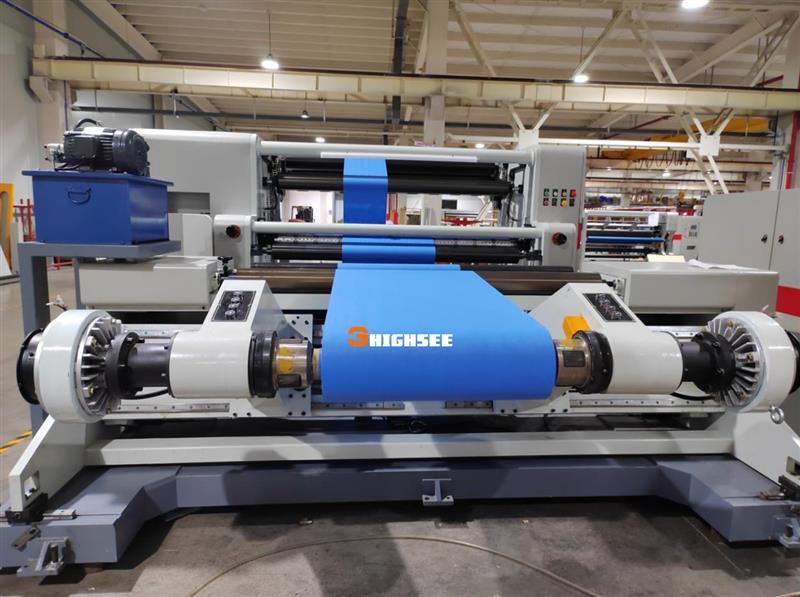

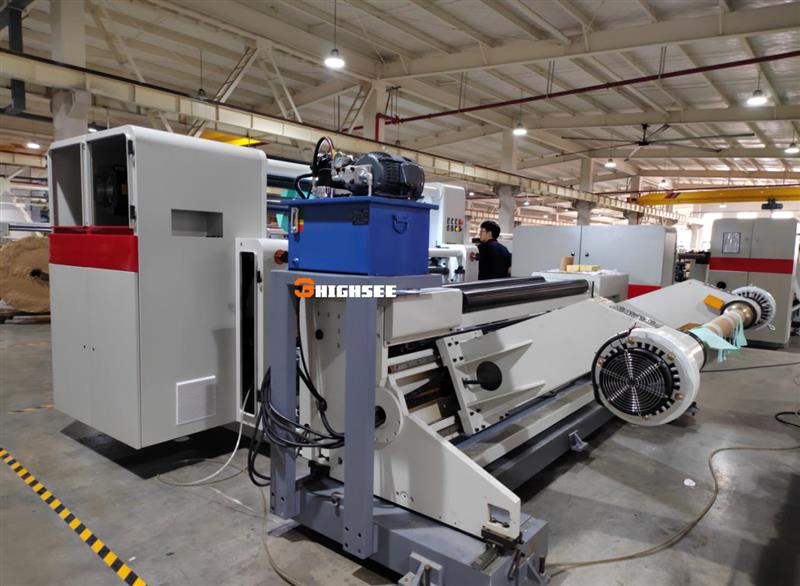

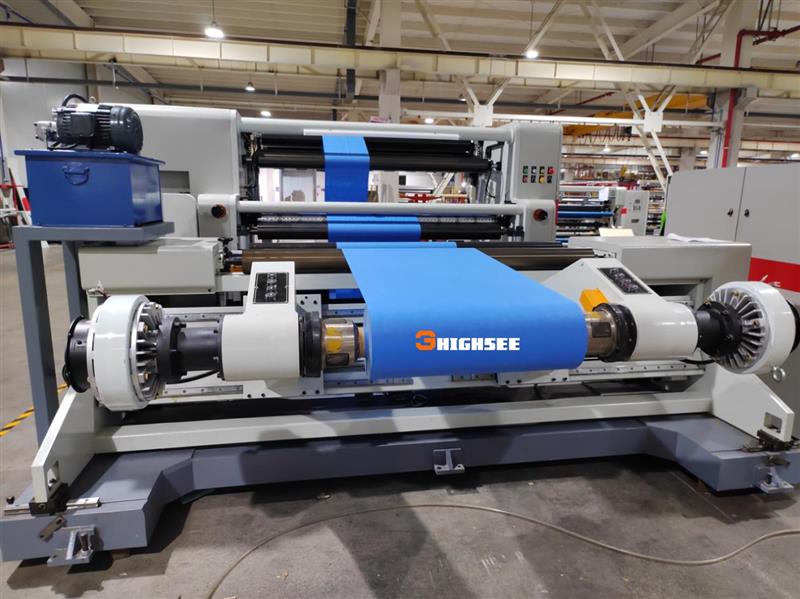

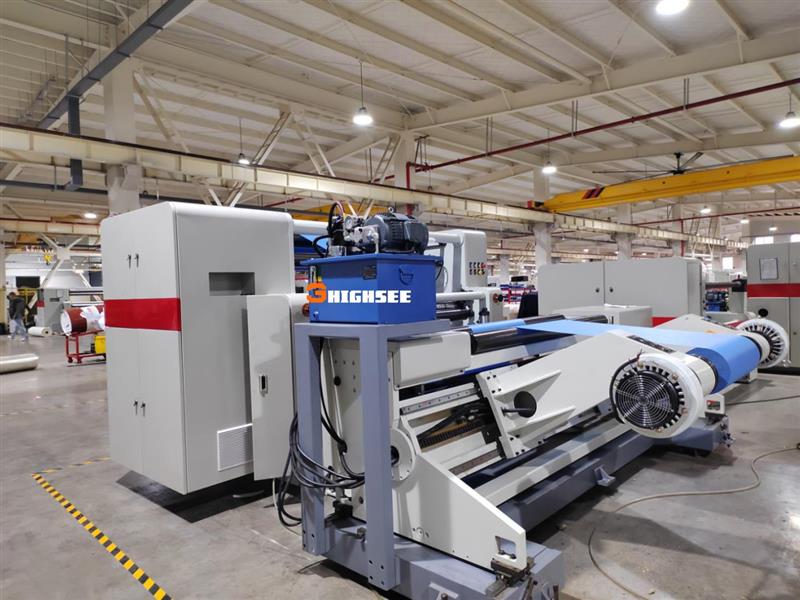

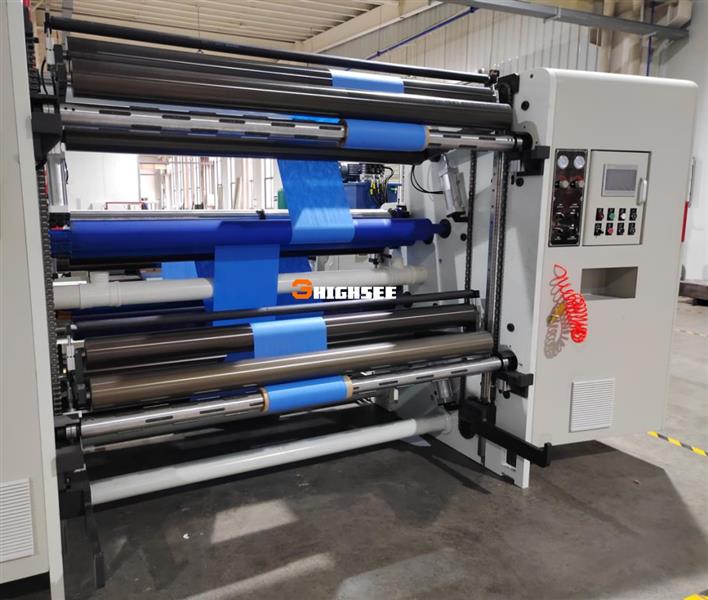

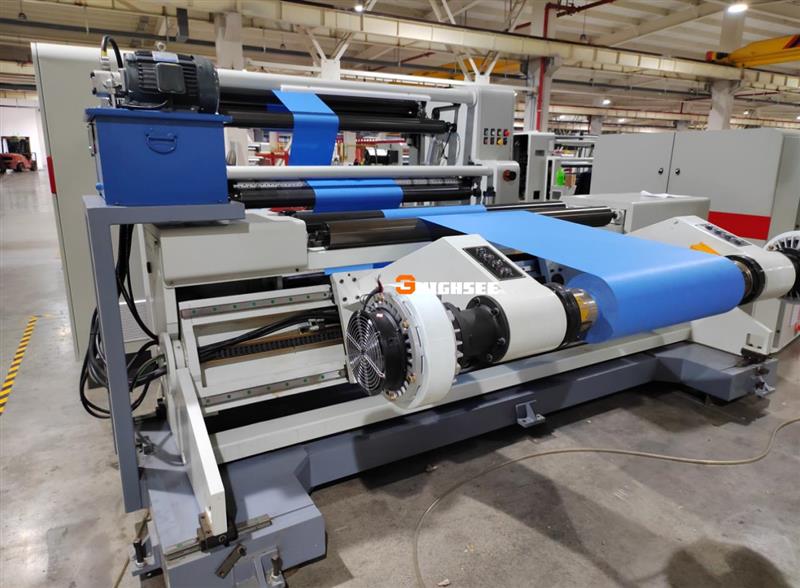

Auto Non-woven Fabric Slitting Rewinding Machine

This machine adopts PLC(Siemes)/Servo motor contro and automatic taper tension,central surface rewinding.Frequency control of motor,run smoothly in acceleration.

This machine is suitable for slitting and rewinding various large roll non-woven fabric and other materials, such as 200g/㎡-400g/㎡ kraft paper, white cardboard, coated paper, silicone oil paper, aluminum foil, tin foil, PVC film, non-woven fabrics and other rolls. The machine adopts three servo motor control, automatic taper tension, and central winding method. The main machine adopts variable frequency speed regulation to maintain balanced operation during acceleration. Automatic meter counting, auto alarm and other functions. The rewinding adopts A and B air shaft structure. Automatic unloading, easy operation. The unwinding adopts ultrasonic/CCD correction system to enable normal slitting of irregular materials. It adopts round knife/flat knife longitudinal slitting method, and high-pressure fan waste edge automatic removal device. Air shaft automatic feeding method, hydraulic shaftless automatic unwinding device.



Technical Parameters

Model

FQA-1300

FQA-1600

FQA-1800

Maximum width of unwinding

1300mm

1600mm

1800mm

Maximum diameter of unwinding

φ1400mm

φ1400mm

φ1400mm

Minimum width of slitting

30mm

30mm

30mm

Maximum diameter of winding

φ1000mm

φ1000mm

中1000mm

Speed of slitting

≤350m/min

≤350m/min

≤350m/min

Power supply

380V/50hz
24kw

380V/50hz
26kw

380V/50hz
30kw

Size and weight

4000kg
3300×3150×1930mm

4500kg
3300×3450×1930mm

5500kg
3300×3650×1930mm



1. Advanced equipment‌: Highsee has advanced processing equipment that can meet various complex processing needs, ensuring that each process meets customer requirements and international standards.
‌2. Exquisite technology‌: Highsee has an experienced technical team that can provide professional processing solutions and technical support, helping customers save a lot of costs.
‌3. Quality assurance‌: Highsee strictly implements the quality management system to ensure product quality. All the machines developed have passed ISO9001 and other international quality management system certifications to ensure that product quality meets international standards.
‌4. Customer first‌: Highsee always puts customer needs first and strives to provide satisfactory processing solutions and services.
‌5. R&D strength‌: Highsee has a strong R&D team and the ability to continuously launch new products. Highsee has a number of patented technologies and can produce energy-saving, efficient and intelligent slitting machines, cross-cutting machines, packaging machines and other machines.
‌6. Brand awareness‌: Highsee enjoys a high reputation in the industry. Customers are more inclined to buy our slitting machines, cross-cutting machines and other equipment with reliable quality and good lifelong after-sales service.
‌7. Market position‌: Highsee slitting machines, cross-cutting machines and other equipment cover multiple industries and have established long-term cooperative relationships with many well-known companies, such as APP Paper, Sun Paper, Kailai Paper, etc. Has exported to America, UK, Germany, Saudi Arabia, Brazil, Turkey, Egypt, Tunisia, Indonesia, Vietnam, etc.
‌8. Production scale‌: Highsee has been engaged in the slitting machine and cross-cutting machine industry for more than 20 years and has large-scale production capabilities, which can reduce the procurement cost and manufacturing cost of unit products.
These advantages of Highsee constitute our competitiveness in the market, helping customers win in the fierce market competition.

Wenzhou Highsee Packing Machinery Co.,ltd is a global leading professional manufacture of paper and plastic flexible packaging equipment joint-stock enterprise. It is located in Wenzhou, Zhejiang, China with superior geographical location and convenient transportation. With more than 20 years' hard working, we have developed into a integrated company which combine manufacture, sales and service together. Now, Highsee has abundant technical force, perfect processing system and a sound after-sales service. Learning from domestic and foreign advanced technology, we combine with market demand and bring our advantages into play to develop new packing equipment constantly. These are widely used in roll material processing industry, such as paper, aluminum foil, plastic and so on. Due to the high degree of automation and excellent quality with competitive price, our products sell very well in domestic. For example, the Sun Paper, the Five-Star Paper, Kai Lai Paper, Constant Xin Paper products, Nanjing Jinwei Paper, South sugar Paper and other enterprises, they are our faithful fans. Also, the products have been exported to the America, the Middle East, Africa, Southeast Asia, Europe and other countries and regions.

If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
