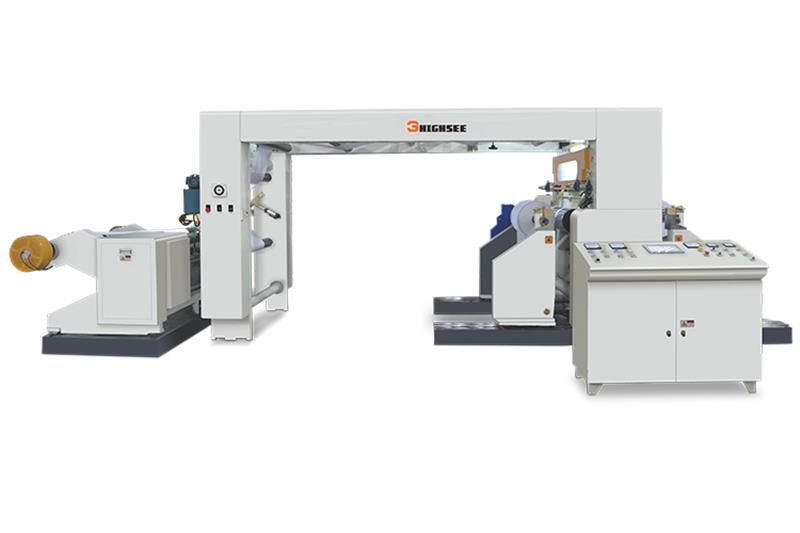

It can also cut various big size roll materials easily ,the roll materials thickness could be 10 to 500 gsm and can also cut finished materials with a diameter of up to 1700mm.This machine adopts intelligent touch screen control, and the host is equipped with a three servo motor control system to ensure smooth operation under high speed. Equipped with a control panel, it can operate machinery at multiple stations, hydraulic shaftless automatic feeding, with sensitive response and low failure rate. Paired with ultrasonic, infrared or CCD automatic correction systems, irregular materials can also be automatically cut. Linear guide rail, automatic unloading, time-saving, labor-saving.The blade shaft is semi-automatic, assisting manual tool changing, easy loading and unloading to save time. The cutting width is as narrow as 1 cm, and the finished product end face is pefect flat.
Technical Parameters:
| Model | KFQ-1300 | KFQ-1600 | KFQ-1800 | KFQ-2000 |
| Max width of unwinding | 1300mm | 1600mm | 1800mm | 2000mm |
| Max diameter of unwinding | φ1700mm | φ1700mm | φ1700mm | φ1700mm |
| Min width of slitting | 30mm | 30mm | 30mm | 30mm |
| Max diameter of winding | φ1500mm | φ1500mm | φ1500mm | φ1500mm |
| Speed of slitting | ≤400m/min | ≤400m/min | ≤400m/min | ≤400m/min |
| Power supply | 380V/50hz 56kw | 380V/50hz 58kw | 380V/50hz 60kw | 380V/50hz 67kw |
| Size and weight |
13000kg 8500*3250*2700mm |
14000kg 8500*3550*2700mm |
15000kg 8500*3750*2700mm |
15900kg 8500*4050*2700mm |
1. Advanced equipment: Highsee has advanced processing equipment that can meet various complex processing needs, ensuring that each process meets customer requirements and international standards.
2. Exquisite technology: Highsee has an experienced technical team that can provide professional processing solutions and technical support, helping customers save a lot of costs.
3. Quality assurance: Highsee strictly implements the quality management system to ensure product quality. All the machines developed have passed ISO9001 and other international quality management system certifications to ensure that product quality meets international standards.
4. Customer first: Highsee always puts customer needs first and strives to provide satisfactory processing solutions and services.
5. R&D strength: Highsee has a strong R&D team and the ability to continuously launch new products. Highsee has a number of patented technologies and can produce energy-saving, efficient and intelligent slitting machines, cross-cutting machines, packaging machines and other machines.
6. Brand awareness: Highsee enjoys a high reputation in the industry. Customers are more inclined to buy our slitting machines, cross-cutting machines and other equipment with reliable quality and good lifelong after-sales service.
7. Market position: Highsee slitting machines, cross-cutting machines and other equipment cover multiple industries and have established long-term cooperative relationships with many well-known companies, such as APP Paper, Sun Paper, Kailai Paper, etc. Has exported to America, UK, Germany, Saudi Arabia, Brazil, Turkey, Egypt, Tunisia, Indonesia, Vietnam, etc.
8. Production scale: Highsee has been engaged in the slitting machine and cross-cutting machine industry for more than 20 years and has large-scale production capabilities, which can reduce the procurement cost and manufacturing cost of unit products.
These advantages of Highsee constitute our competitiveness in the market, helping customers win in the fierce market competition.

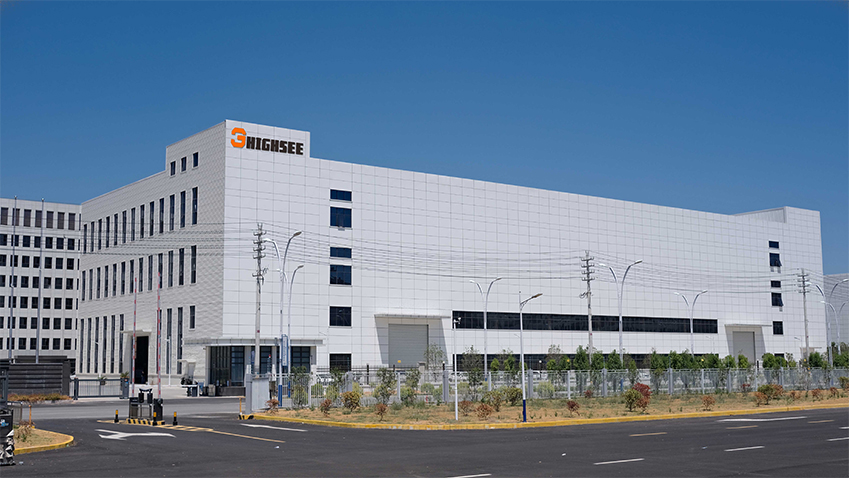

Wenzhou Highsee Packing Machinery Co., Ltd.is the top branch of Gaobao Group,specializing in manufacturing roll to roll slitting and rewinding machine ,roll to sheet cutting machine ,packing machine for A4 paper and all kinds of other film,paper,non-woven,label materials for more than 20 years.We focus on technological innovation and quality control and after-sale service.It's widely recognized by the domestic and oversea market and has gained quite good reputations from old customers.Highsee Machinery consists of technical development department, manufacturing department, domestic and international sales department and after-sales service department.Machine with lSO9001 Quality Management System Certificate and CE Certificate and International Patents. Machinery has exported more than 80 countries: Asia(such as Turkey,Pakistan,Korea, India, Thailand, Vietnam, Indonesia, Malaysia,ect),Europe (France,Russia, Bulgaria, Croatia,Romania, Spain, ltaly,UK,ect), Africa (Algeria,Egypt,Tunisia,Uganda,etc), expecially in North America and South America,almost all paper related factories are using our machinery,such as America,Mexico,Brazil,Canada Argentina,ect.
We hope to establish good and long-term business cooperation with customers from all over the world.
